文章总结： 本文逆向分析了Android应用BOSS直聘的Native网络协议加密机制。通过抓包发现请求参数sp和sig，利用FridaHook定位到加密函数，最终在so库中识别出LZ4压缩和RC4加密算法。分析揭示了请求体先经LZ4压缩再RC4加密生成sp，以及基于特定字符串拼接后签名生成sig的完整流程。该分析为理解应用层协议安全提供了实战参考。 综合评分： 88 文章分类： 逆向分析,实战经验,WEB安全,漏洞分析,安全工具
Android Native 网络协议中请求加密、签名生成与响应解密机制逆向分析
lingyi223 lingyi223
看雪学苑
2026年7月20日 18:05 上海
在小说阅读器读本章
去阅读
sp
#
抓个包请求体，主要有sqh好像是对查询参数的封装，sig是一个hash签名：
params = {
'sp': 'zwp_NCTRJTSwi3Deh8DkHOCGvU04AYbyceqJ44s9CxuyL65jv20XaVYg1XpFLNVaF7LolNJtanuLr-ARNM136qI3RFO3xe8JyDZtt-TQVeh_TOtTgNw-LeFjEs8hx0tJoj7v9ncKmYZWKNui4my5Fc9Loyx67W-9L8MQyX1JatkuDl9Ec4gZFqDhg7Z1SBl0Q5EvXAZ_LJ35wN_c_ViiMlj3uGWAABuj9TFoIfCmIcIOaRu9i17K6XcsIJIEghrjY_AQsFedXLouh-p8zBzplaSLQy8yuaoULyZDqtdxw86gRZuOCUabqvRweZ50Ts-rnpqw0cJQkcepJGJbYAT2oPuMb9UvAxskJpjN8Vn5m9p8AC3Qf315z1Ph4lPo_uqiWXyB28eW9nIwZIgxKBLh2xOq54lTA5Ct31iIUOxoOj04438qYjIFex15STw8UT7JBX015qL0qMzCgA2hHNktJyB3aWKLQB9WA49WA4-3NPUFYeG9MG5ctKnjGm3rM_ExFlhOvCR8kzQpG-dlpneNXI7mrKm_h7YAuJvgGMvuYJykEqRFtRjqmY9PNSNjTWlVJ5rKy11ia6ww9XkqQ9O99CJD6yMDB1NvUMx1qKwI4Z6pOsWID9QSFgU2jyItA8casHba5AW_fneHDzDFA-4eMVDzE--jy9U3o0uhDlgpcEUGWdoQY3NpppAOpyt1Ba4Gp8eLiw6lMzGY2l-49oq2Q8tsJLJ14fQ0CoY-I6Bl2U4Y4pQiH0q-xzSVNWY7OkePHrfvEPLh0WU~',
'sig': 'V3.0da0bd61bc37b38f86b7cef6f5c641015',
'app_id': '1003',
}
hook一下hashMap定位
Java.perform(function (){
var hashMap = Java.use("java.util.HashMap");
hashMap.put.implementation = function (a, b) {
if (a != null) {
var keyStr = a.toString();
if (keyStr === "sp" || keyStr === "sig") {
console.log(`检测到目标key: ${keyStr}，value: ${b}`);
console.log("调用栈信息:");
var stackTrace = Java.use("java.lang.Thread").currentThread().getStackTrace();
for (var i = 0; i < stackTrace.length; i++) {
console.log(` ${stackTrace[i].toString()}`);
}
}
}
return this.put(a, b);
}
});
[M2011K2C::com.hpbr.bosszhipin ]-> 检测到目标key: sp，value: zwp_NCTRJTSwi3Deh8DkHOCGvU04AYbyceqJ44s9CxuyL65jv20XaVYg1XpFLNVaF7LolNJtanuLr-ARNM136qI3RFO3xe8JyDZtt-TQVeh_TOtTgNw-LeFjEs8hx0tJoj7v9ncKmYZWy5FcBDry1-4muxL8MQyX1JatkuDl9Ec4gZFqDhg7Z1SBl0Q5EvXAZ_LJ35wN_c_ViiMlj3uGWAABuj9TFoIfCmIcIOaRu9i17K6XcsIJIEghrjY_AQsFedXLouh-p8zBzplaSLQy8yuaoULyZDqtdxw86gRZuOCUabqvRweZ50Ts-rnpqw0cJQkcepJGJbYAT2oPuMb9UvAxskJpjN8Vn5m9p8AC3Qf315z1Ph4lPo_uqiWXyB28eW9nIwZIgxKBLh2xOq54lTA5Ct31iIUOxoOj04438qYjIFex15STw8UT7JBX015qL0qMzCgA2hHNktJyB3aWKLQB9WA49WA4-3NPUFYeG9MG5ctKnjGm3rM_ExFlhOvCR8kzQpG-dlpneNXI7mrKm_h7YAuJvgGMvuYJykEqRFtRjqmY9PNSNjTWlVJ5rKy11ia6ww9XkqQ9O99CJD6yMDB1NvUMx1qKwI4Z6pOsWID9QSFgU2jyItA8casHba5AW_fneHDzDFA-4eMVDzE--jy9U3o0uhDlgpcEUGWdoQY3NpppAOpyt1Ba4Gp8eLiw6lMzGY2l-49oq2Q8tsJLJ14fQ0CoY-I6Bl2U4Y4pQrFku-xzSVNWY7OkePHrfvEPLh0WU~
调用栈信息:
dalvik.system.VMStack.getThreadStackTrace(Native Method)
java.lang.Thread.getStackTrace(Thread.java:2842)
java.util.HashMap.put(Unknown Source)
jf0.b.w(SourceFile:30)
net.bosszhipin.base.m.f(SourceFile:67)
net.bosszhipin.base.m.c(SourceFile:127)
net.bosszhipin.base.k$a.a(SourceFile:21)
com.twl.http.client.AbsBatchApiRequest.getBatchParamsV3(SourceFile:100)
然后就看到这两行，都在：
String strD2 = com.twl.signer.a.d(strD, secretKey);
bVar.w("sp", strD2);
if (strD.length() > 0x1388) {
strD = strD.substring(0x0, 0x1388);
}
bVar.w("sig", com.twl.signer.a.i(com.hpbr.bosszhipin.config.m.f(str) + strD, secretKey));
public static String d(String str, String str2) {
String strEncodeRequest = YZWG.encodeRequest(str, str2);
b(strEncodeRequest, "");
return strEncodeRequest;
}
然后hook一下d函数就能知道参数什么的了，好像是一个类似与url编码的先不管了。
a.d is called: str=client_info=%7B%22version%22%3A%2216%22%2C%22os%22%3A%22Android%22%2C%22start_time%22%3A%221783348924685%22%2C%22resume_time%22%3A%221783348924685%22%2C%22channel%22%3A%220%22%2C%22model%22%3A%22Xiaomi%7C%7CM2011K2C%22%2C%22dzt%22%3A0%2C%22loc_per%22%3A0%2C%22uniqid%22%3A%22b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a%22%2C%22oaid%22%3A%22NA%22%2C%22oaid_honor%22%3A%22NA%22%2C%22did%22%3A%22DUOJFPDWDfdBIkVuTvtq-PI5ItdBFw0gaNa9RFVPSkZQRFdEZmRCSWtWdVR2dHEtUEk1SXRkQkZ3MGdhTmE5c2h1%22%2C%22tinker_id%22%3A%22Prod-arm64-v8a-release-14.110.1411010_0629-10-29-16%22%2C%22is_bg_req%22%3A0%2C%22network%22%3A%22wifi%22%2C%22operator%22%3A%22CHN-CT%22%2C%22abi%22%3A1%2C%22version_flag%22%3A%221411010%22%7D&curidentity=0&req_time=1783349112261&uniqid=b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a&v=14.110, str2=null
一直跟下去会调用一个native函数
private static native String nativeEncodeRequest(byte[] bArr, String str);
然后找一下动态注册的地址，可以用unidbg，和hook注册函数
RegisterNative(com/twl/signer/YZWG, nativeEncodeRequest([BLjava/lang/String;)Ljava/lang/String;, RX@0x4001f6ac[libyzwg.so]0x1f6ac)

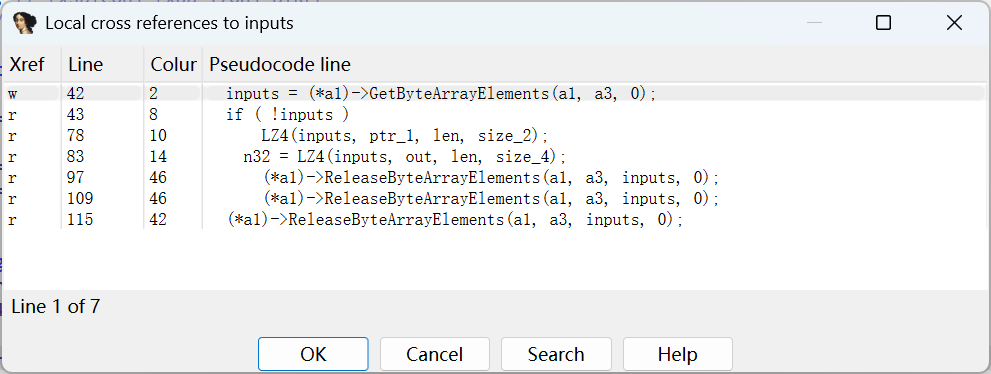

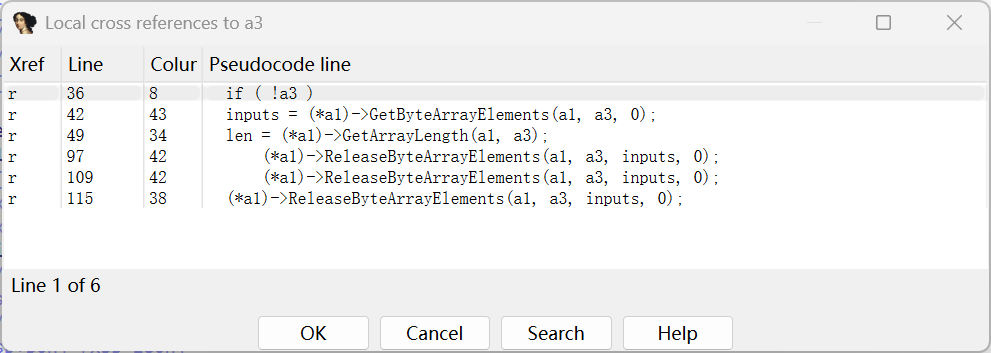

直接上ida，找到对应函数交叉引用一下，很容易发现一个函数的入参就是它，然后用frida hook一下进一步验证。
找到函数根据LZ4_compress_limitedOutput重命名一下，然后搜一下，知道这里一个压缩的方法，下面的赋值操作应该是自定义文件头，out应该是输出缓冲区。
__int64 __fastcall LZ4(__int64 inputs, _DWORD *out, unsigned int len, int size)
{
__int64 result; // x0
int v7; // [xsp+8h] [xbp-28h]
v7 = LZ4_compress_limitedOutput(inputs);
if ( v7 > 0 )
{
*out = 'kcolBPZB';
out[2] = 0;
out[3] = v7;
out[4] = len;
out[5] = len ^ v7;
LODWORD(result) = v7 + 24;
}
else
{
LODWORD(result) = v7;
}
return result;
}

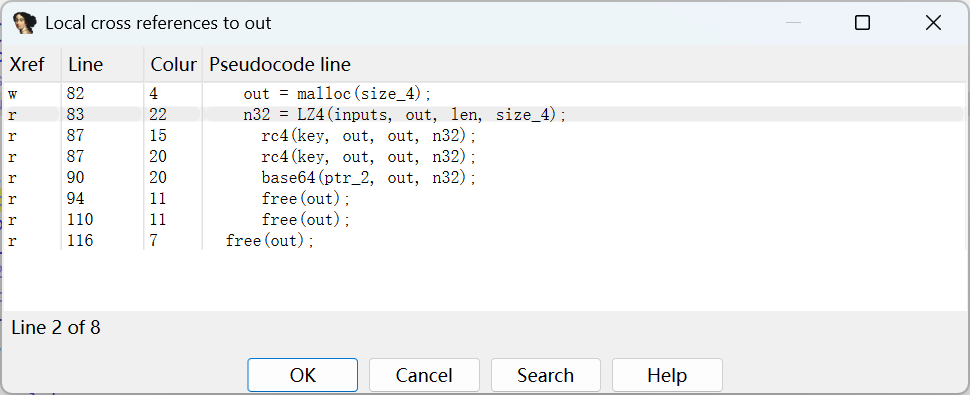

然后在对out进行交叉引用，很明显就能看到一下函数的入参，然后第一个参数和上面一个函数有关可以看一下。
RC4_Box(key, s_2, size);
rc4(key, out, out, n32);
特征也算是特别明显了，大概率是一个rc4的s_box初始化，s很可能就是密钥。
__int64 __fastcall RC4_Box(__int64 result, char *s, int a3){
char v3; // w1
__int64 v4; // x26
int i; // w11
char v6; // w1
int n256_1; // w14
unsigned __int8 v8; // w8
int j; // w26
unsigned __int8 v11; // [xsp+Ch] [xbp-74h]
int n256; // [xsp+18h] [xbp-68h]
unsigned __int8 v13; // [xsp+1Ch] [xbp-64h]
for ( i = 0; ; ++i )
{
while ( y < 10 && y > 9 )
;
if ( i >= 256 )
break;
*(result + i) = i;
}
n256_1 = 0;
v8 = 0;
*(result + 256) = 0;
for ( j = -401696071; ; j = -401696071 )
{
while ( j == -401696071 )
{
n256 = n256_1;
v13 = v8;
j = -85974536;
}
if ( n256 >= 256 )
break;
while ( 1 )
{
v6 = *(result + n256);
v11 = s[n256 % a3] + v6 + v13;
*(result + n256) = *(result + v11);
*(result + v11) = v6;
if ( y >= 10 || y <= 9 )
break;
v3 = *(result + n256);
v4 = (v13 + s[n256 % a3] + v3);
*(result + n256) = *(result + v4);
*(result + v4) = v3;
}
v8 = v11;
n256_1 = n256 + 1;
}
return result;
}
剩下这个就是rc4的加密函数了
__int64 __fastcall rc4(__int64 s_box, __int64 inputs, __int64 a3, int len){
int i; // w12
char v5; // w13
unsigned __int8 v6; // w12
unsigned __int8 v7; // w13
char v8; // w15
int i_1; // [xsp+Ch] [xbp-4h]
for ( i = 0; ; i = i_1 + 1 )
{
i_1 = i;
if ( i >= len )
break;
v5 = *(s_box + 257);
v6 = *(s_box + 256) + 1;
*(s_box + 256) = v6;
v7 = v5 + *(s_box + v6);
*(s_box + 257) = v7;
v8 = *(s_box + v6);
*(s_box + v6) = *(s_box + v7);
*(s_box + v7) = v8;
*(a3 + i_1) = *(s_box + (*(s_box + *(s_box + 257)) + *(s_box + *(s_box + 256)))) ^ *(inputs + i_1);
}
return s_box;
}
直接dump s_box
S_box = [0xbd, 0x32, 0x03, 0xc7, 0x6c, 0x0e, 0x77, 0xcc, 0xcb, 0x40, 0x97, 0xab, 0x17, 0xcd, 0x6b, 0x7f, 0x25, 0xee,
0x6f, 0x1a, 0x44, 0x18, 0x89, 0x11, 0xbc, 0xc0, 0x26, 0xfd, 0xac, 0x3a, 0x7e, 0x28, 0x5f, 0xa3, 0xf5, 0x47,
0xda, 0x2e, 0xfb, 0xd4, 0x2c, 0xaa, 0xdd, 0x88, 0x73, 0xd0, 0x06, 0x46, 0x24, 0xd1, 0xa5, 0x3b, 0xd3, 0xc1,
0xa4, 0x30, 0xd2, 0x29, 0xaf, 0x87, 0x79, 0x01, 0x7a, 0x22, 0xad, 0x9d, 0x4c, 0x27, 0xdb, 0x5b, 0xf1, 0x43,
0xea, 0x3d, 0x5e, 0xfe, 0xef, 0xc8, 0x7c, 0x34, 0x5a, 0xde, 0x75, 0x60, 0xae, 0x23, 0x82, 0x0a, 0x9f, 0x48,
0x1c, 0xe2, 0x6e, 0x61, 0x16, 0x1e, 0x8e, 0xd5, 0xcf, 0xfc, 0xc6, 0xc3, 0x94, 0x5d, 0x71, 0x4e, 0x91, 0x38,
0x5c, 0x39, 0x4d, 0x58, 0xe6, 0x8a, 0xca, 0x9b, 0x78, 0x65, 0x4b, 0xe0, 0xb9, 0x8b, 0xf8, 0xff, 0xb1, 0x0c,
0x4f, 0x41, 0x80, 0x15, 0x8c, 0x21, 0x55, 0x56, 0x57, 0xa8, 0x96, 0x90, 0xba, 0xb8, 0x69, 0x1f, 0xc2, 0x98,
0xb0, 0x09, 0xa9, 0x3f, 0x31, 0x74, 0x37, 0xf6, 0xbf, 0xc9, 0x49, 0xa0, 0x54, 0x13, 0x8f, 0xbb, 0x0d, 0x14,
0x05, 0xb5, 0xbe, 0x86, 0x1d, 0xa7, 0x36, 0x99, 0xe4, 0x72, 0x0b, 0xc4, 0x20, 0x10, 0x12, 0xf2, 0xd9, 0x42,
0x2a, 0x64, 0xd6, 0x93, 0xf4, 0x63, 0xe1, 0x0f, 0x51, 0xed, 0x7b, 0x6a, 0x7d, 0x6d, 0xe5, 0x19, 0x50, 0x53,
0xb7, 0xe9, 0xf3, 0xb6, 0xd7, 0x59, 0xb4, 0xf7, 0xb2, 0x08, 0xd8, 0x3e, 0x33, 0xb3, 0x2b, 0x62, 0x04, 0x8d,
0x70, 0x95, 0xa1, 0x9e, 0xe8, 0x76, 0xe7, 0xce, 0x84, 0xa2, 0x2f, 0x9c, 0xfa, 0x3c, 0x67, 0x02, 0xa6, 0x83,
0xf9, 0xdc, 0x9a, 0x2d, 0x45, 0x81, 0xf0, 0x85, 0x4a, 0xe3, 0x00, 0x68, 0xec, 0xdf, 0x07, 0x35, 0x92, 0x66,
0x1b, 0xc5, 0x52, 0xeb, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x6e, 0x77, 0x48, 0xb3, 0xb5, 0xd9,
0x54, 0x90, 0x60, 0xeb, 0x4a, 0xde, 0x78, 0x00, 0x00, 0x00, 0x40, 0xab, 0x4a, 0x4a, 0x00, 0x00, 0x00, 0x00,
0x68, 0x3f, 0x0a, 0x03, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00]
def rc4(inputs):
s_box = S_box.copy()
outputs = [0] * len(inputs)
for i in range(len(inputs)):
v5 = s_box[257]
v6 = (s_box[256] + 1) & 0xFF
s_box[256] = v6
v7 = (v5 + s_box[v6]) & 0xFF
s_box[257] = v7
v8 = s_box[v6]
s_box[v6] = s_box[v7]
s_box[v7] = v8
part1 = s_box[s_box[257]]
part2 = s_box[s_box[256]]
idx = (part1 + part2) & 0xFF
keystream_byte = s_box[idx]
outputs[i] = (keystream_byte ^ inputs[i]) & 0xFF
return outputs
然后经过base64就是我们的结果了
RC4_Box(key, s_2, size);
rc4(key, out, out, n32);
size_1 = sub_2EA10(n32);
ptr_2 = malloc(size_1);
base64(ptr_2, out, n32);
然后和标准base64对比一下，发现只替换了码表
BASE64_CHARS = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789-_"
lz4
def LZ4(inputs):
data = inputs.encode('utf-8')
original_len = len(data)
compressed = lz4.frame.compress(data).rstrip(b'\x00')
compressed_len = len(compressed) - 19
print(hex(compressed_len))
header = bytearray(24)
header[0:8] = b'BZPBlock'
struct.pack_into('<I', header, 12, compressed_len)
struct.pack_into('<I', header, 16, original_len)
struct.pack_into('<I', header, 20, original_len ^ compressed_len)
header.extend(compressed[19:])
return compressed
整理一下流程
参数封装->lz4压缩->rc4加密->魔改base64编码
#
sig
根据开始给出的地方直接定位，然后尝试hook
private static native byte[] nativeSignature(byte[] bArr, String str);
直接hook上一层的，可以直接看到String字符串
static String signature(String str, String str2) {
if (!loadSo()) {
return "";
}
try {
return bytes2String(nativeSignature(str.getBytes("UTF-8"), str2));
} catch (UnsupportedEncodingException e11) {
e11.printStackTrace();
return "";
}
}
可以看到和sq就是前后加了一点东西，1194187086好像是固定的是对一个字符串crc32的结果，跟一下看看。
a.i is called: str=/api/batch/requestsclient_info=%7B%22version%22%3A%2216%22%2C%22os%22%3A%22Android%22%2C%22start_time%22%3A%221783411220252%22%2C%22resume_time%22%3A%221783411220252%22%2C%22channel%22%3A%220%22%2C%22model%22%3A%22Xiaomi%7C%7CM2011K2C%22%2C%22dzt%22%3A0%2C%22loc_per%22%3A0%2C%22uniqid%22%3A%22b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a%22%2C%22oaid%22%3A%22NA%22%2C%22oaid_honor%22%3A%22NA%22%2C%22did%22%3A%22DUOJFPDWDfdBIkVuTvtq-PI5ItdBFw0gaNa9RFVPSkZQRFdEZmRCSWtWdVR2dHEtUEk1SXRkQkZ3MGdhTmE5c2h1%22%2C%22tinker_id%22%3A%22Prod-arm64-v8a-release-14.110.1411010_0629-10-29-16%22%2C%22is_bg_req%22%3A0%2C%22network%22%3A%22wifi%22%2C%22operator%22%3A%22CHN-CT%22%2C%22abi%22%3A1%2C%22version_flag%22%3A%221411010%22%7D&curidentity=0&req_time=1783411794093&uniqid=b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a&v=14.110 1194187086, str2=null
a.i result=V3.0f1121a03da21087afeb5633e5898a6d8
这里拼接了一下strD
byte[] bArrE = com.twl.signer.a.e(yf0.n.h(batchBodyBeanD), secretKey);
bVar.y(bArrE);
StringstrA = com.twl.signer.a.a(bArrE);
longjElapsedRealtime = SystemClock.elapsedRealtime();
StringstrD2 = com.twl.signer.a.d(strD, secretKey);
g(jElapsedRealtime, str, strD.length());
bVar.w("sp", strD2);
if (strD.length() > 0x1388) {
strD = strD.substring(0x0, 0x1388);
}
bVar.w("sig", com.twl.signer.a.i(com.hpbr.bosszhipin.config.m.f(str) + strD + strA, secretKey));
直接看strA的结果跟下去就会知道是是一个crc32的运算，而且是标准的
[M2011K2C::com.hpbr.bosszhipin ]-> a.a is called: bArr=-49,10,127,52,36,-47,3
a.a result=1194187086
private static native String nativeCalculateCRC32(byte[] bArr);
尝试了一下没定位到直接上unidbg补环境，还挺少的
@Override
public DvmObject<?> getStaticObjectField(BaseVM vm, DvmClass dvmClass, String signature) {
switch (signature) {
case "com/twl/signer/YZWG->gContext:Landroid/content/Context;":{
return vm.resolveClass("android/content/Context").newObject(null);
}
}
return super.getStaticObjectField(vm,dvmClass,signature);
}
@Override
public DvmObject<?> callObjectMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
switch (signature) {
case "android/content/pm/PackageManager->getPackagesForUid(I)[Ljava/lang/String;":{
return new ArrayObject(new StringObject(vm, vm.getPackageName()));
}
}
return super.callObjectMethod(vm,dvmObject,signature,varArg);
}
@Override
public int callIntMethod(BaseVM vm, DvmObject<?> dvmObject, String signature, VarArg varArg) {
if (signature.equals("java/lang/String->hashCode()I")){
int i = dvmObject.getValue().toString().hashCode();
return i;
}
return super.callIntMethod(vm, dvmObject, signature, varArg);
}
写一个函数调用一下顺便写一个trace
public String getSign() throws UnsupportedEncodingException {
DvmClass CheckSignUtil = vm.resolveClass("com/twl/signer/YZWG");
String method = "nativeSignature([BLjava/lang/String;)[B";
String str = "/api/batch/requestsclient_info=%7B%22version%22%3A%2216%22%2C%22os%22%3A%22Android%22%2C%22start_time%22%3A%221783429715302%22%2C%22resume_time%22%3A%221783429715302%22%2C%22channel%22%3A%220%22%2C%22model%22%3A%22Xiaomi%7C%7CM2011K2C%22%2C%22dzt%22%3A0%2C%22loc_per%22%3A0%2C%22uniqid%22%3A%22b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a%22%2C%22oaid%22%3A%22NA%22%2C%22oaid_honor%22%3A%22NA%22%2C%22did%22%3A%22DUOJFPDWDfdBIkVuTvtq-PI5ItdBFw0gaNa9RFVPSkZQRFdEZmRCSWtWdVR2dHEtUEk1SXRkQkZ3MGdhTmE5c2h1%22%2C%22tinker_id%22%3A%22Prod-arm64-v8a-release-14.110.1411010_0629-10-29-16%22%2C%22is_bg_req%22%3A0%2C%22network%22%3A%22wifi%22%2C%22operator%22%3A%22CHN-CT%22%2C%22abi%22%3A1%2C%22version_flag%22%3A%221411010%22%7D&curidentity=0&req_time=1783435136897&uniqid=b93ddbdc-ccbe-4340-be6b-d070f2b1fd3a&v=14.1101194187086";
byte[] bytes = str.getBytes();
DvmObject<?> resultObj = CheckSignUtil.callStaticJniMethodObject(emulator, method, new ByteArray(vm, bytes), null);
if (resultObj instanceof ByteArray){
ByteArray bytesResult= (ByteArray)resultObj;
byte[] value = bytesResult.getValue();
return new String(value,"UTF-8");
}
return "";
}
void traceCode(){
StringtraceFile ="D:\\unidbg-0.9.8\\unidbg-0.9.8\\unidbg-android\\src\\test\\java\\boss\\getSign.log";
PrintStreamtraceStream =null;
try {
traceStream = new PrintStream(new FileOutputStream(traceFile), true);
} catch (FileNotFoundException e) {
throw new RuntimeException(e);
}
emulator.traceCode(module.base, module.base+module.size).setRedirect(traceStream);
}
V3.0c54cce74b6d5d969b1abd0e9d825eedf
然后搜索最后1字节，定位到这里，然后根据这个地址搜，进一步验证
[13:04:27 689][libyzwg.so 0x01c9a8][63696a38]0x4001c9a8: "ldrb w3, [x11, x10]" x11=0xbffff570 x10=0xf => w3=0xdf
然后可以看到这个函数，hook一下入参
char *__fastcall sub_1C6E0(_BYTE *ptr, int n){
int n16; // w21
int v3; // w8
char *v7; // [xsp+30h] [xbp-F0h]
_BYTE v8[16]; // [xsp+50h] [xbp-D0h] BYREF
_BYTE v9[88]; // [xsp+60h] [xbp-C0h] BYREF
__int64 v10; // [xsp+B8h] [xbp-68h]
v10 = *(_ReadStatusReg(TPIDR_EL0) + 40);
v7 = malloc(0x21u);
sub_2EE84(v9);
while ( n > 0 )
{
if ( n > 512 )
{
sub_2EE98(v9, ptr, 512);
if ( v3 == -381856710 )
goto LABEL_4;
}
else
{
sub_2EE98(v9, ptr, n);
}
n -= 512;
ptr += 512;
}
md5(v8, v9); // ;关键函数
n16 = 0;
LABEL_4:
while ( n16 < 16 )
{
snprintf(
&v7[2 * n16],
0x20u,
aDqs9a, // "dqs9A"
v8[n16]);
++n16;
}
return v7;
}
前面和入参相容的，然后新增了不知道是hash还是啥，trace看一下
size: 900
0000: 2F 61 70 69 2F 62 61 74 63 68 2F 72 65 71 75 65 /api/batch/reque
0010: 73 74 73 63 6C 69 65 6E 74 5F 69 6E 66 6F 3D 25 stsclient_info=%
0020: 37 42 25 32 32 76 65 72 73 69 6F 6E 25 32 32 25 7B%22version%22%
0030: 33 41 25 32 32 31 36 25 32 32 25 32 43 25 32 32 3A%2216%22%2C%22
0040: 6F 73 25 32 32 25 33 41 25 32 32 41 6E 64 72 6F os%22%3A%22Andro
0050: 69 64 25 32 32 25 32 43 25 32 32 73 74 61 72 74 id%22%2C%22start
0060: 5F 74 69 6D 65 25 32 32 25 33 41 25 32 32 31 37 _time%22%3A%2217
0070: 38 33 34 32 39 37 31 35 33 30 32 25 32 32 25 32 83429715302%22%2
0080: 43 25 32 32 72 65 73 75 6D 65 5F 74 69 6D 65 25 C%22resume_time%
02F0: 6E 69 71 69 64 3D 62 39 33 64 64 62 64 63 2D 63 niqid=b93ddbdc-c
0300: 63 62 65 2D 34 33 34 30 2D 62 65 36 62 2D 64 30 cbe-4340-be6b-d0
0310: 37 30 66 32 62 31 66 64 33 61 26 76 3D 31 34 2E 70f2b1fd3a&v=14.
0320: 31 31 30 31 31 39 34 31 38 37 30 38 36 61 33 30 1101194187086a30
0330: 38 66 33 36 32 38 62 33 66 33 39 66 37 64 33 35 8f3628b3f39f7d35
0340: 63 64 65 62 65 62 36 39 32 30 65 32 31 00 00 00 cdebeb6920e21...
hex to str 发现就是我们要的结果
[13:16:54 578] Memory WRITE at 0x40759335, data size = 8, data value = 0x3766393366336238, PC=RX@0x405ac184[libc.so]0x1c184, LR=RX@0x40024354[libyzwg.so]0x24354
[13:16:54 578] Memory WRITE at 0x4075933d, data size = 8, data value = 0x6562656463353364, PC=RX@0x405ac18c[libc.so]0x1c18c, LR=RX@0x40024354[libyzwg.so]0x24354
[13:16:54 578] Memory WRITE at 0x40759345, data size = 8, data value = 0x3132653032393662, PC=RX@0x405ac18c[libc.so]0x1c18c, LR=RX@0x40024354[libyzwg.so]0x24354
[13:16:54 578] Memory WRITE at 0x4075934d, data size = 1, data value = 0x00, PC=RX@0x40023ed8[libyzwg.so]0x23ed8, LR=RX@0x40024354[libyzwg.so]0x24354
是一个复制函数，下个断点看看
.text:0000000000024350 BL .memcpy
mx1
>-----------------------------------------------------------------------------<
[13:21:11 776]x1=RW@0x40753030, md5=0a461c2d0db818ee663f9c7607f4dd08, hex=61333038663336323862336633396637643335636465626562363932306532310000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
size: 112
0000: 61 33 30 38 66 33 36 32 38 62 33 66 33 39 66 37 a308f3628b3f39f7
0010: 64 33 35 63 64 65 62 65 62 36 39 32 30 65 32 31 d35cdebeb6920e21
0020: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0030: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0040: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0050: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
0060: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................
^-----------------------------------------------------------------------------^
接着对0x40753030进行追踪
[13:22:30 314] Memory WRITE at 0x40753030, data size = 8, data value = 0x3236336638303361, PC=RX@0x40029000[libyzwg.so]0x29000, LR=RX@0x40028ff0[libyzwg.so]0x28ff0
[13:22:30 314] Memory WRITE at 0x40753038, data size = 8, data value = 0x3766393366336238, PC=RX@0x40029000[libyzwg.so]0x29000, LR=RX@0x40028ff0[libyzwg.so]0x28ff0
[13:22:30 315] Memory WRITE at 0x40753040, data size = 8, data value = 0x6562656463353364, PC=RX@0x40029000[libyzwg.so]0x29000, LR=RX@0x40028ff0[libyzwg.so]0x28ff0
发现是在Jni_onload里面的，并且是对某个数据的rc4，我就没管了，因为这玩意只执行一次我觉得他是固定的，有兴趣可以看看。
RC4_Box(s_box, s, v4);
rc4(s_box, &inputs_, v13, 32);
v14 = 0;
s_1 = malloc(0x21u);
v6 = v13[1];
v7 = v13[0];
入参已经弄清楚了，这个追踪入参，然后看一下这个函数，进去瞎点点看看
.text:000000000001C958 BL md5
void __fastcall md5(__int64 ptr, __int64 a2){
unsignedint n0x38; // w8
int n120; // w9
unsignedint i; // w12
_BYTE ptra[8]; // [xsp+10h] [xbp-50h] BYREF
__int64 v8; // [xsp+18h] [xbp-48h]
v8 = *(_ReadStatusReg(TPIDR_EL0) + 40);
sub_33A8C(ptra, a2 + 16, 8u);
n0x38 = (*(a2 + 16) >> 3) & 0xE000003F;
if ( n0x38 >= 0x38 )
n120 = 120;
else
n120 = 56;
sub_2EE98(a2, ::ptr, n120 - n0x38);
sub_2EE98(a2, ptra, 8u);
sub_33A8C(ptr, a2, 0x10u);
for ( i = 0; i < 0x58; ++i )
*(a2 + i) = 0;
}
sub_2EE98
__int64 __fastcall sub_2EE98(_DWORD *n1575040482, _BYTE *ptr, unsignedint n512){
unsignedint v4; // w10
__int64 v5; // kr00_8
__int64 n1575040482_1; // x2
unsignedint i; // w8
__int64 v10; // [xsp+10h] [xbp-A0h]
unsignedint v11; // [xsp+18h] [xbp-98h]
unsignedint i_2; // [xsp+1Ch] [xbp-94h]
unsignedint v14; // [xsp+30h] [xbp-80h]
unsignedint v15; // [xsp+38h] [xbp-78h]
unsignedint i_1; // [xsp+4Ch] [xbp-64h]
v10 = (n1575040482 + 6);
v4 = n1575040482[4];
v5 = 8LL * n512;
v14 = (v4 >> 3) & 0xE000003F;
v15 = 8 * n512 + v4;
n1575040482[4] = v15;
if ( v15 < v5 )
++n1575040482[5];
n1575040482[5] += HIDWORD(v5);
if ( 64 - v14 > n512 )
{
v11 = (v4 >> 3) & 0xE000003F;
i_2 = 0;
}
else
{
sub_2F3C0(n1575040482 + v14 + 24, ptr, 64 - v14, 0xC222DE52LL, 0xD7B3D641LL, 0x56D9A8A1);
hash(n1575040482, v10, n1575040482_1);
for ( i = 64 - v14; ; i = i_1 + 64 )
{
i_1 = i;
if ( i + 63 >= n512 )
break;
hash(n1575040482, &ptr[i], 3530282178LL);
}
v11 = 0;
i_2 = i;
}
return sub_2F3C0(n1575040482 + v11 + 24, &ptr[i_2], n512 - i_2, 0xC222DE52LL, 0xD7B3D641LL, 0x56D9A8A1);
}
hash看到4轮密钥，很可能是一个md5啥的(其实，看见是hash算法后，我就拿着明文找个在线网站取测了)，而且还是标准的。
v383 = a2;
n1575040482_1 = n1575040482_3;
StatusReg = _ReadStatusReg(TPIDR_EL0);
v392 = *(StatusReg + 40);
v389 = 1;
v390 = y_7 < 10;
if ( ((v389 | v390) & 1) == 0 )
goto LABEL_3;
while ( 1 )
{
v185 = *n1575040482_1;
v186 = n1575040482_1[1];
v187 = n1575040482_1[2];
v188 = n1575040482_1[3];
signEnd = binascii.crc32(bytes(sign))
signBody = "/api/batch/requests" + sqBody + str(signEnd) + "a308f3628b3f39f7d35cdebeb6920e21"
sign = "V3.0" + hashlib.md5(signBody.encode()).hexdigest()
整个流程大概清楚了
响应解密
#
继续看这个java类非常的友好，nativeDecodeContent名字一看就是解密的。
private static native String nativeCalculateCRC32(byte[] bArr);
private static native byte[]nativeDecodeContent(String str, String str2);
private static native byte[]nativeDecodeContent(byte[] bArr, String str, int i11, int i12, int i13);
private static native byte[]nativeDecodePassword(String str);
private static native byte[]nativeDecodeRequestBody(byte[] bArr, String str);
private static native String nativeEncodeData(byte[] bArr, String str);
private static native String nativeEncodePassword(String str);
private static native String nativeEncodeRequest(byte[] bArr, String str);
private static native byte[]nativeEncodeRequestBody(byte[] bArr, String str);
private static native byte[]nativeSignature(byte[] bArr, String str);
然后根据入参定位一下，然后在根据这个函数的入参，继续trace
ptr = lz4(&v57, ptr_1, ptr_4, ptr_11, &v57);// ;这里已经解密了
emulator.attach().addBreakPoint(module.base + 0x2765C);
emulator.attach().addBreakPoint(module.base + 0x26354);
emulator.traceWrite(0x40447000,0x40447000 + 0x10);
[13:42:54 030] Memory WRITE at 0x40447000, data size = 1, data value = 0x42, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447001, data size = 1, data value = 0x5a, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447002, data size = 1, data value = 0x50, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447003, data size = 1, data value = 0x42, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447004, data size = 1, data value = 0x6c, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447005, data size = 1, data value = 0x6f, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447006, data size = 1, data value = 0x63, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
[13:42:54 030] Memory WRITE at 0x40447007, data size = 1, data value = 0x6b, PC=RX@0x4003476c[libyzwg.so]0x3476c, LR=RX@0x40025c20[libyzwg.so]0x25c20
还是rc4
v10 = strlen(s);
RC4_Box(s_box, s, v10);
rc4(s_box, ptr, ptr, len);
if ( y_107 >= 10 || y_107 <= 9 )
def nativeDecodeContent(cont):
decrypted = rc4(cont)
length = struct.unpack_from('<I', bytes(decrypted)[16:20])[0]
lz = lz4.block.decompress(bytes(decrypted)[24:], length)
text = lz.decode('utf-8')
print(json.loads(text))
流程：rc4解密->lz4解压
参数基本都完成了，看看效果，非常nice
#
看雪ID：lingyi223
https://bbs.kanxue.com/user-home-1043807.htm
*本文为看雪论坛优秀文章，由 lingyi223 原创，转载请注明来自看雪社区
第十届安全开发者峰会【议题征集】-欢迎投稿
往期推荐
一道简单但不简约的堆题——CISCN2026初赛堆题robo分析
第二届软件系统安全赛决赛 StudentManagement 详解
APP整体加固原理
获取SYS加载方源头进程的方案-基于ETW技术
libmsaoaidsec.so 检测监测——绕过 Hook 脚本
球分享
球点赞
球在看
点击阅读原文查看更多
免责声明：
本文所载程序、技术方法仅面向合法合规的安全研究与教学场景，旨在提升网络安全防护能力，具有明确的技术研究属性。
任何单位或个人未经授权，将本文内容用于攻击、破坏等非法用途的，由此引发的全部法律责任、民事赔偿及连带责任，均由行为人独立承担，本站不承担任何连带责任。
本站内容均为技术交流与知识分享目的发布，若存在版权侵权或其他异议，请通过邮件联系处理，具体联系方式可点击页面上方的联系我。
本文转载自：看雪学苑 lingyi223 lingyi223《Android Native 网络协议中请求加密、签名生成与响应解密机制逆向分析》
版权声明
本站仅做备份收录，仅供研究与教学参考之用。
读者将信息用于其他用途的，全部法律及连带责任由读者自行承担，本站不承担任何责任。
评论
